SCREEN PRINTING MACHINES
Flat Bed Screen Printing Machines l Cylindrical Screen Printing Machines
Multi-Purpose Screen Printing Machines l Roll to Roll Screen Printing Machines
Ribbon Screen Printing Machines l Hand Screen Printers l Screen printing Materials
Flat Bed Screen Printing Machines

MODEL : EASY-MINI
Pad Printing Machine
MODEL : DSB2-2045
Fully Automatic Two Color
Ribbon Screen Printing Machine

MODEL : HSC-160
Hot Stamping Machine
MODEL : SYP6A
MODEL : SYP6B
MODEL : SYP6C

Model No.
SYP6A
SYP6B
SYP6C
Max. printing area 650x450mm 850x550mm 450x330mm
Size of printing table 700x500mm 900x600mm 500x380mm
Max. frame size 870x550mm 1070x650mm 650x450mm
Thickness of printing matter 0-90mm 0-90mm 0-150mm
Max. printing speed 12 pcs/min 12 pcs/min 16 pcs/min
Power
220v 1 phase 400W
Air pressure 0.5-0.65 Mpa/cm2 0.5-0.65 Mpa/cm2 0.5-0.65 Mpa/cm2
Air consumption 16 L/min 23 L/min 12 L/min
Air compressor 3hp 3hp 3hp
Machine dimension 1080x950x1660mm 1100x1280x1660mm 750x930x1350mm
Packing measurement 1260x1130x1900mm 1280x1460x1900mm 930x1110x1590mm
Net weight 313kg 395kg 183kg
Gross weight 424kg 529kg 263kg




Model No. SYP2B
Max. printing area 900x600mm
Size of printing table 1000x840mm
Max. frame size 1100x900mm
Thickness of printing matter 0-10mm
Max. printing speed 10 pcs/min
Power 380v 3 phase 1300W
Machine dimension 1520x1100x1350mm
Packing measurement 1700x1280x1590mm
Net weight 449kg
Gross weight 584kg

MODEL: SYP2B
Model No. LHS6090
Max. printing area 900x600mm
Size of printing table 1000x835mm
Max. frame size 1000x940mm
Min. frame size 800x800mm
Thickness of printing matter 0-30mm
Max. printing speed 13 pcs/min
Power 380v 3 phase 1300W
Air pressure 0.5-0.65 Mpa/cm2
Air consumption 3.8 L/min
Air compressor 3hp
Machine dimension 1580x1100x1400mm
Packing measurement 1760x1280x1640mm
Net weight 610kg
Gross weight 751kg


MODEL: LHS6090

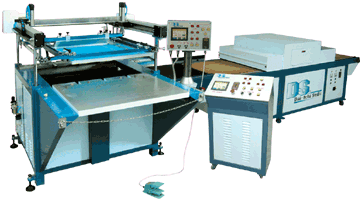

MODEL : DSAM6090


Model no.
DSAM6090
Max. printing area
600mm x 900mm
Size of printing table
860mm x 1050mm
Max. frame size
900mm x 1050mm
Thickness of printing matter
10mm
Max. printing speed
20pcs/min
Power
380v 3 phase 2800W
Air pressure
0.5-0.65 Mpa/cm2
Machine dimension
2280mm x 2310mm x 1500mm
Packing measurement
2400mm x 1720mm x 1800mm
Net weight
980kg
Gross weight
1213kg

Cylindrical Screen Printing Machines

Model No.
SYK1B
Max. printing area
200x300mm(H)
Max. frame size
350x880mm
Max. printing speed
9 pcs/min
Power
220v 1phase 15W
Air pressure
0.5-0.65 Mpa/cm2
Air consumption
7 L/min
Air compressor
3hp
Machine dimension
860x1180x1550mm
Packing measurement
1040x1360x1600mm
Net weight
170kg
Gross weight
270kg

MODEL : SYK1B

Model No. SYK1C
Max. printing area 120x200mm(H)
Max. frame size 230x480mm
Max. printing speed 18 pcs/min
Power 220v 1phase 15W
Air pressure 0.5-0.65 Mpa/cm2
Air consumption 6 L/min
Air compressor 3hp
Machine dimension 820x700x1450mm
Packing measurement 1000x880x1690mm
Net weight 102kg
Gross weight 177kg

MODEL : SYK1C


Multi-Purpose Screen Printing Machines

Model No. SYK1D
Max. printing area (for round items) 150x200mm(H)
Max. printing area (for flat items) 250x350mm
Size of printing table 300x400mm
Max. frame size 400x630mm
Max. printing speed 13 pcs/min
Power 220v 410W
Air pressure 0.5-0.65 Mpa/cm2
Air consumption 6 L/min
Air compressor 3hp
Machine dimension 780x830x1500mm
Packing measurement 1210x1160x1780mm
Net weight 246kg
Gross weight 376kg

MODEL : SYK1D

Roll to Roll Screen Printing Machines

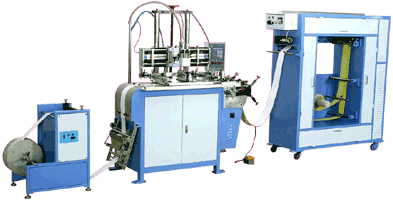

MODEL : SYP5 Single Color Roll to Roll Screen Printing Machine


Model No. SYP5
Max. printing area 410x250mm
Size of printing table 1020x380mm
Max. frame size 620x420mm
Max. printing speed 25 pcs/min
Power 220v 1 phase 550W
Air pressure 0.5-0.65 Mpa/cm2
Air consumption 9 L/min
Machine dimension 1550x750x1580mm
Packing measurement 1730x930x1790mm
Net weight 438kg
Gross weight 567kg

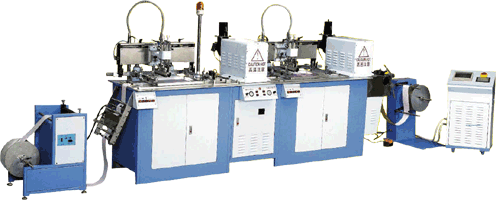

  MODEL : SYP5-2 Two Colors Roll to Roll Screen Printing Machine

Model No.
SYP5-2 (UV)
Max. printing area
220x250mm
Size of printing table
830x380mm/880x380mm
Max. frame size
580x380mm
Max. printing speed
20 pcs/min
Power
380v 3 phase 7500W
Air pressure
0.5-0.65 Mpa/cm2
Air consumption
18 L/min
Machine dimension
3420x900x1500mm
Packing measurement
(1) 1910x1080x1740mm
Packing measurement
(2) 1910x1010x1740mm
Net weight
1000kg
Gross weight
1502kg


Ribbon Screen Printing Machines
MODEL : DSB2-2045 Fully Automatic Two Color Ribbon Screen Printing Machine

Model no.
DSB2-2045
No. of color
2
Max. printing area
450x150mm
Max. frame size
680x300mm
Max. printing speed
25-35 Cycles/min
Power
380v 3 phase 14300W
Air pressure
0.5-0.65 Mpa/cm2
Air consumption
3.1 L/min
Machine dimension
8550mm x 720mm x 1730mm
Packing measurement
2410mm x 900mm x 1790mm

1470mm x 850mm x 1590mm

1430mm x 900mm x 1790mm

1860mm x 950mm x 1590mm

2400mm x 860mm x 1610mm
Net weight
1741kg
Gross weight
2333kg

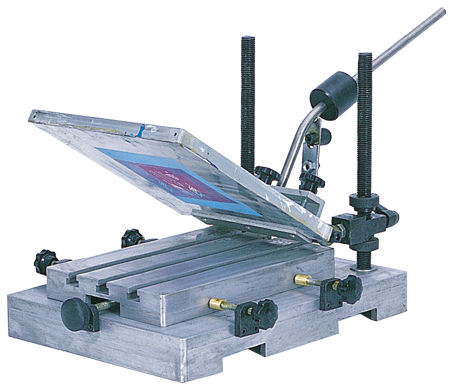

  Hand Screen Printers
Model no. LH3AN1
Max. printing area 200x160mm
Size of printing table 300x200mm
Min. frame size 320x280mm
Machine dimension 720x400x410mm
Packing measurement 880x780x610mm
Net weight 13kg
Gross weight 55kg
Suction availability No

MODEL : LH3AN Hand Screen Printers
